The STS/MUTOH XPJ 1682D 64” DTF Printer from MUTOH Japan has a staggered dual-head design that provides ultra-fast print speeds. It produces smooth gradations while delivering high-quality printing even
with reduced resolution.

It has SAI’s Flexi DTF Pro Edition RIP Software, bundled with Flexi DTF Pro Editor. The XPJ-1682D also features automatic bi-directional alignments, a user-friendly touch panel, added LED lighting, and an upgraded media feed flange that allows operators to easily and quickly load media and
exchange multiple rolls. These features are designed to increase user friendly operation and maintenance while continuing to offer high production, high-quality output. The XPJ-1682D is paired with STS’s DTF ink, which offers users excellent color gamut and outstanding durability.

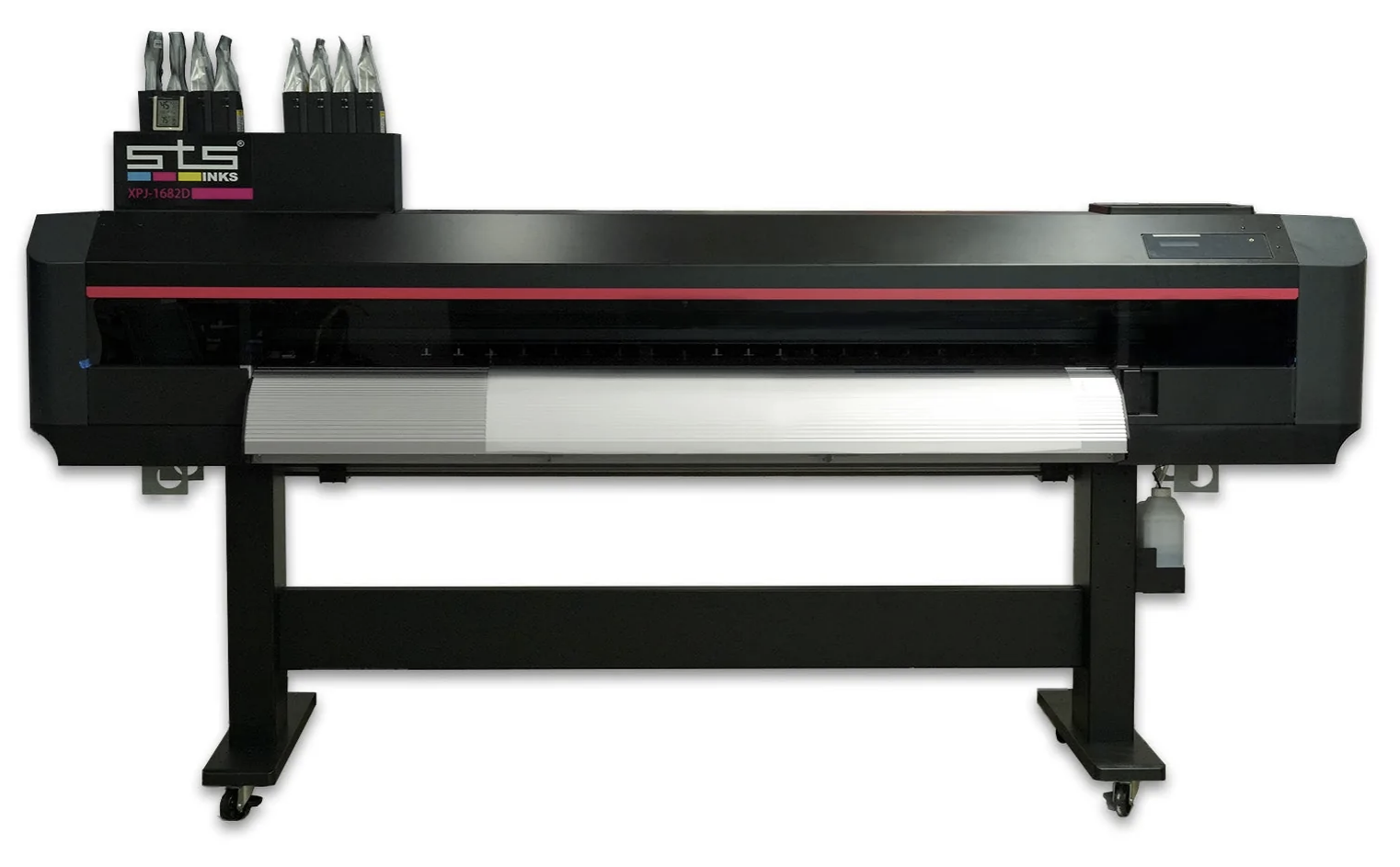

STS/MUTOH 64” XPJ 1682D DTF Printer

  • Printing systems Drop-on-demand Micro Piezo Inkjet Technology
    Print head height Three level adjustment: Low 1.5mm, Mid. 2.5mm, High 4.0mm
    Print head 2 (staggered set-up)
    Max print resolution 1440x1440dpi
    Print modes 1440/1080/720/360dpi
    Media width 64”
    Media capacity ø 5.9” dia / 2” & 3” cores /Roll media 66lbs or less
    Max media thickness Low 0.3mm, Mid. 1.3mm, High 2.8mm
    Max printable width 63.6 in
    Height adjustment Automatic
    RIP software Flexi21 DTF Pro Edition
    Ink Type DTF Water Based
    Ink Set CMYK Lm Lc White x8
    Volume 1000mL CMYK Lm Lc / 900mL White
    No. of slots 8
    Interface Gigabit-Ethernet (1000BASE-T )
    Power Requirements AC 100-120V± 10%, 50/60Hz ± 1Hz
    Printable Environment Temperature: 68-89.6°F | Humidity: 40-50%RH (non condensing) Rec. environment: Temperature: 71.6-86°F
    Power Consumption Main: Operation status 77W or less | Standby: 52W or less
    Dimensions (WxDxH) Printer including stand: 108.26”x35.23”x56.22” cover closed
    Weight Body: 321.87lb | Stand: 70.54lb
